Thermographic Testing (TT)

Thermographic Testing, also known as infrared testing, is a powerful non-destructive testing (NDT) method that uses infrared technology to detect and map temperature variations in equipment, components, and manufacturing processes. This method is invaluable for identifying potential maintenance issues that could lead to equipment failure and costly downtime.

How It Works

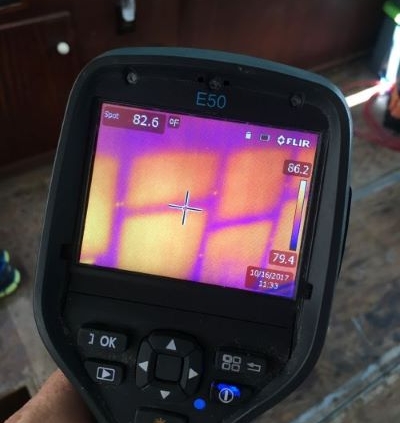

Thermographic testing captures thermal images using infrared cameras. These images reveal heat variations that are invisible to the naked eye, providing critical data for predictive maintenance. By analyzing these temperature fluctuations, technicians can identify hot spots, which often indicate potential problems such as friction, electrical resistance, or other inefficiencies.

Critical Applications of Thermographic Testing

Bearing Monitoring

Bearings are crucial for machinery movement. Excessive temperature rise in bearings, typically due to friction from insufficient lubrication or over-lubrication, can lead to wear and premature failure. Thermographic testing helps monitor bearing temperatures to prevent equipment failure.

Electrical Systems

Regular infrared inspections of electrical cabinets help detect increased electrical resistance that can cause components to overheat, signaling the onset of equipment degradation. Early detection allows for planned maintenance, minimizing operational disruptions.

Leak Detection

Thermography can detect abnormal temperature patterns caused by leaks in systems, allowing for timely repairs before significant damage occurs.

Process Temperature Analysis

This involves monitoring and comparing operational temperatures against established norms to identify deviations that may indicate malfunctions or inefficiencies.

Benefits of Thermographic Testing

Cost Efficiency

Early detection of issues allows for repairs at convenient times, reducing unplanned downtime and maintenance costs.

Speed

Unlike other diagnostic tools that may be slower and less comprehensive, thermographic testing provides a quick and complete temperature snapshot of equipment or systems, facilitating faster decision-making.

Extended Equipment Life

Managing temperature levels can significantly extend the service life of machinery by preventing overheating, a common cause of equipment degradation.

Enhanced Safety

By identifying overheating issues, thermographic testing prevents equipment failure and reduces the risk of accidents associated with high temperatures.

When to Use Thermographic Testing

Thermographic testing is instrumental in scenarios where:

  •  Quick diagnostic information is needed, especially in systems with moving or rotating parts.
  • A comprehensive overview of temperature conditions across a facility can guide maintenance priorities.
  • Predictive maintenance is preferred over reactive strategies to enhance operational efficiency and safety.

Thermographic testing is an essential tool in a comprehensive maintenance strategy. It provides swift and accurate insights into equipment health and helps facilities maintain high standards of operation and safety.

Author: Clanton Wood
