Visual Testing (VT)

Visual Testing (VT) is a fundamental and widely utilized method in nondestructive testing (NDT). As the simplest and most accessible form of NDT, VT is a preliminary assessment technique that precedes more complex NDT methods. It involves thoroughly inspecting components, structures, or systems to identify any visible defects and irregularities that can affect their integrity and functionality.

Core Principles of Visual Testing

VT is based on direct observation to assess the external condition of a test object. The basic process includes a systematic examination to spot surface anomalies such as cracks, misalignment, corrosion, and other forms of wear and tear that are evident to the naked eye.

Techniques and Tools in Visual Testing

Direct Visual Inspection

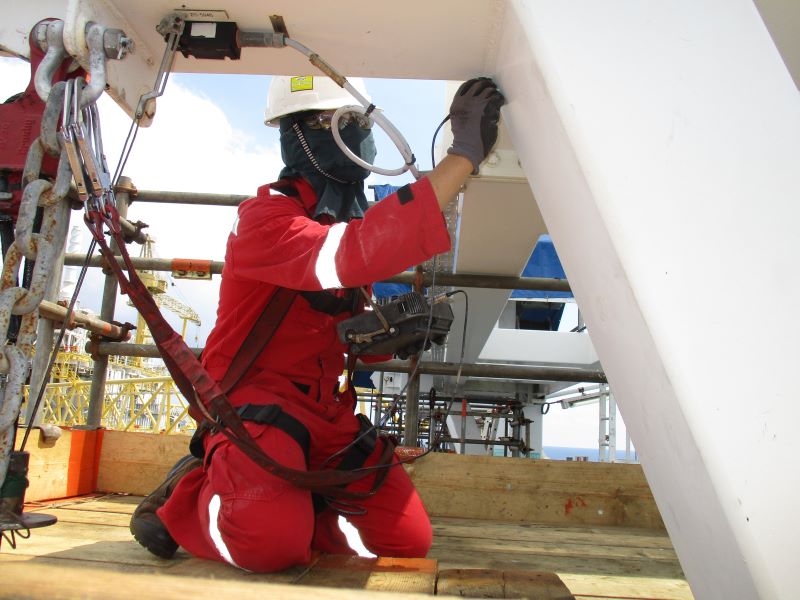

This is the most straightforward approach where inspectors visually scan components. This method requires good lighting conditions and sometimes needs the inspector to access confined spaces or elevated areas.

Remote Visual Inspection (RVI)

Remote viewing tools are employed when direct access to the test object is restricted due to hazardous environments or physical barriers. These include:

  • Drones and Unmanned Aerial Vehicles (UAVs): Useful for inspecting large structures such as bridges, towers, and building exteriors.
  • Remotely Operated Vehicles (ROVs): Employed underwater to inspect submerged structures like pipelines, ship hulls, and offshore platforms.
  • Endoscopes and Borescopes: These flexible or rigid optical devices allow a detailed internal view of complex machinery or structures. They are often used in the aerospace and automotive industries.

Enhanced Visual Inspection

For more detailed analysis, visual testing may incorporate tools that enhance the inspector’s natural senses:

  • Magnification Tools: Handheld magnifiers or microscopic systems can reveal minor surface defects that are not visible to the unaided eye.
  • Measuring Instruments: Tools like calipers and micrometers measure physical dimensions to ensure components meet specification tolerances. They can also help identify issues like wear or erosion.
  • Surface Condition Indicators: Techniques such as dye penetrant testing may be used in conjunction with visual inspection to detect fine cracks. These are especially useful in polished or non-porous surfaces where defects are not easily visible.

Applications of Visual Testing

Visual Testing is employed across various industries due to its versatility and immediacy. It is especially prevalent in:

Manufacturing

Routine checks for quality control of products on assembly lines.

Construction and Infrastructure

Regular inspection of buildings, bridges, and roads for safety compliance.

Aerospace and Automotive

Detailed inspections of critical components like engine systems and fuselage integrity in airplanes, or assembly checks in automotive manufacturing.

Energy Sector

Monitoring of power generation equipment and pipelines in oil and gas facilities to prevent failures.

Advantages of Visual Testing

Cost-Effectiveness

VT is among the most economical NDT methods, requiring minimal equipment.

Immediate Results

Provides instant feedback, which is crucial for rapid production environments and preventative maintenance schedules.

Ease of Implementation

Can be performed without specialized training, although expertise can enhance the effectiveness of the inspections.

Challenges in Visual Testing

Surface Limitations

VT is limited to identifying surface-level defects and cannot detect subsurface anomalies.

Human Factor

The effectiveness of visual inspections can vary significantly based on the inspector’s experience and perceptiveness.

In summary, Visual Testing remains a critical first step in the NDT process, offering a quick, efficient, and non-invasive means to ensure the integrity and safety of materials and structures. It is a vital component of quality control and maintenance regimes across all sectors that rely on the continued serviceability of physical assets. 
