The Ultimate Nondestructive Testing Guide

Welcome to the comprehensive world of Nondestructive Testing (NDT), a critical field that employs advanced technology to evaluate the properties and integrity of materials and components without causing damage. This guide is designed to introduce you to the various methods of NDT, the immense value they offer to numerous industries, and the rewarding career paths available for NDT professionals.

What Is Nondestructive Testing?

Nondestructive Testing (NDT), also known as Nondestructive Evaluation (NDE), and Nondestructive Inspection (NDI), is a specialized practice that merges quality assurance with materials science to evaluate the integrity of materials and components without damaging them. This approach allows technicians to use a variety of techniques to detect internal and external flaws such as cracks, voids, and inclusions, as well as to ensure the correct assembly of parts. NDT is essential in industries like aerospace, manufacturing, and construction, as it confirms safety and reliability while maintaining the component’s usability for further service. The key aspects of NDT include:



  • Do no Harm: NDT utilizes methods and techniques that do not alter or damage the component being inspected. This is crucial for expensive or critical components where destructive testing would be impractical or wasteful.
  • Variety of Techniques: NDT encompasses a wide range of techniques, each suited to detecting specific types of defects and applicable to different materials and structures. Common methods include Ultrasonic Testing (UT), Radiographic Testing (RT), Magnetic Particle Testing (MT), Eddy Current Testing (ET), and Visual Inspection, among others.
  • Safety and Reliability: NDT plays a pivotal role in ensuring the safety and reliability of components and structures in various industries, including aerospace, automotive, construction, and manufacturing. By detecting flaws that could lead to failures, NDT helps prevent accidents and extend the life of the equipment.
  • Cost-Effectiveness: By identifying potential problems early, NDT helps avoid the costs associated with failures and downtime. It allows for timely maintenance and repairs, which can be significantly less expensive than replacing a failed component.
  • Quality Assurance: NDT is integral to quality assurance programs across industries. It ensures that parts and products meet quality standards and regulatory compliance by providing thorough insights into material integrity without compromising the material’s structure.
  • Real-Time Results: Many NDT methods provide immediate feedback, which is essential for monitoring ongoing operations and making real-time decisions regarding the condition of equipment or structures.
  • Skill and Training: Effective NDT requires highly skilled and trained technicians. The complexity of the techniques and the critical nature of the findings necessitate a high level of expertise, often certified by professional bodies or standards organizations.
  • Adaptability and Innovation: NDT techniques continue to evolve with advances in technology. Innovations in digital imaging, sensor technology, and data processing are enhancing the capabilities of NDT, making it more efficient, accurate, and capable of handling complex inspections.

The Essential Role of NDT

Nondestructive Testing (NDT) is a critical practice in maintaining the integrity and functionality of industrial components across various sectors. This set of methods is crucial for ensuring operational safety, enhancing product quality, minimizing costs, and prolonging the lifespan of equipment. NDT plays an essential role in industries such as aerospace, construction, manufacturing, and oil & gas, where the failure of components can have dire consequences. Here’s a closer look at why NDT is vital:



  • Safety: NDT helps to identify potential structural and material weaknesses before they lead to disastrous failures, ensuring the safety of operations and saving lives.
  • Quality Assurance: Regular inspections using NDT provide confidence that products are defect-free and meet rigorous industry standards, ensuring superior performance.
  • Cost Savings: Early fault detection through NDT techniques allows for timely repairs, avoiding costly replacements and large-scale failures that can lead to significant financial losses.
  • Longevity and Durability: Routine NDT evaluations help detect minor issues early, which can be addressed promptly to avoid major breakdowns, thereby extending the operational life of equipment.
  • Protecting the Environment: NDT is instrumental in preventing environmental hazards such as leaks and spills by ensuring the integrity of pipelines and storage systems, particularly in industries like oil and gas.

Through these critical functions, NDT proves indispensable in maintaining economic efficiency, environmental stewardship, and safety standards of industries worldwide.

What Are the Methods of Nondestructive Testing?

NDT is diverse, with several techniques each suited to specific types of materials and testing requirements. Here is a basic description and summary of the eight most common NDT methods currently used:

Visual Testing (VT)

Visual Testing (VT) is an essential and widely employed method in nondestructive testing (NDT), serving as a preliminary assessment tool that often precedes more sophisticated NDT methods. It involves a thorough inspection of components, structures, or systems using direct observation to identify visible defects that might compromise their integrity and functionality. Techniques range from simple direct visual inspection, which may require access to confined spaces or elevated areas, to more complex Remote Visual Inspection (RVI) using drones, ROVs, or endoscopic devices for areas that are hazardous or difficult to reach. Enhanced visual inspection might include magnification tools and measuring instruments to detect minute surface defects and ensure components meet specific tolerances. Visual Testing is critical across various industries such as manufacturing, aerospace, automotive, and infrastructure for routine quality control and safety compliance. Despite its simplicity and cost-effectiveness, the primary limitation of VT is its inability to detect subsurface defects, and its effectiveness heavily depends on the inspector’s skill and experience.

Liquid Penetrant Testing (PT)

Penetrant Testing (PT), also recognized as Liquid Penetrant Testing (LPT), Dye Penetrant Inspection (DPI), or Liquid Penetrant Inspection (LPI), is a cost-effective and extensively utilized nondestructive testing (NDT) method. PT is especially effective for detecting surface-breaking defects in non-porous materials such as metals, plastics, and ceramics. This method applies to a wide range of materials, including ferrous and non-ferrous metals, making it invaluable for inspecting various components such as castings, forgings, and welds.

Magnetic Particle Testing (MT)

Magnetic Particle Testing (MT or MPT), also referred to as Magnetic Particle Inspection (MPI), is a vital nondestructive testing (NDT) method designed to detect surface and near-surface discontinuities in ferromagnetic materials such as iron, nickel, cobalt, and their alloys. This technique is particularly effective for identifying defects like cracks or voids that could potentially compromise a material’s integrity.

Radiographic Testing (RT)

Radiographic Testing (RT) is a versatile nondestructive testing (NDT) method used to examine various manufactured components’ internal structure and integrity. This technique utilizes X-rays or gamma rays, both forms of short-wavelength electromagnetic radiation, which allow them to penetrate and pass through materials to reveal internal features.

Ultrasonic Testing (UT)

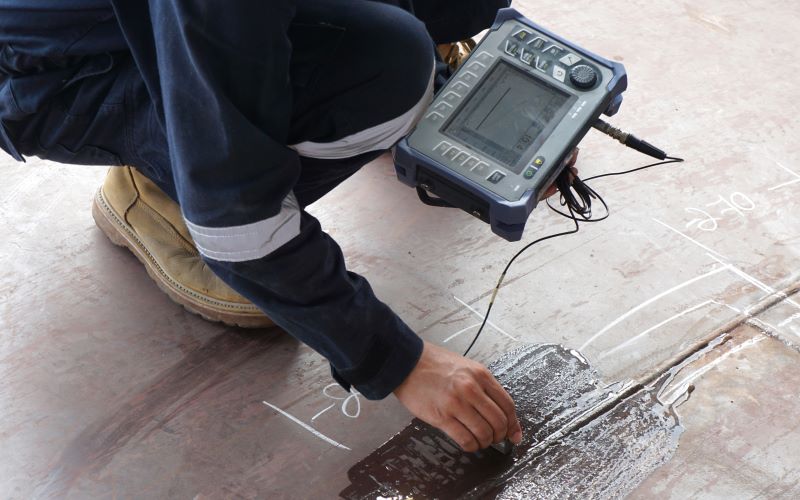

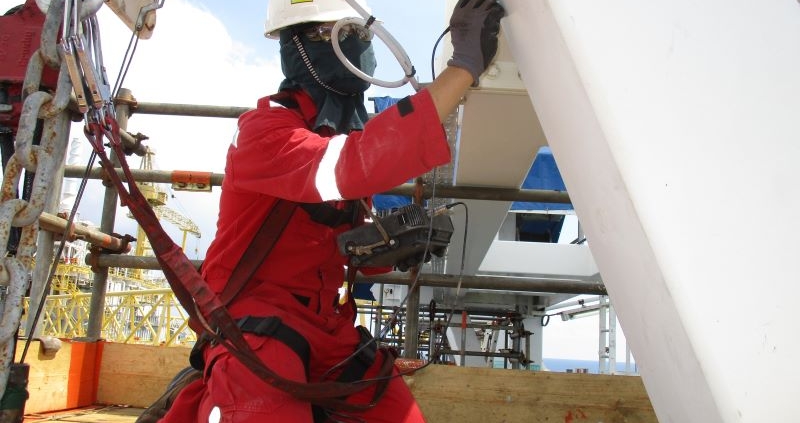

Ultrasonic Testing (UT) is a sophisticated nondestructive testing technique that employs high-frequency ultrasonic waves to evaluate the internal structure of materials. This method is versatile, applying to various materials, including metals, alloys, concrete, wood, and composites, though it is most effective with metals and alloys such as steel. UT is crucial across several industries, notably steel and aluminum construction, metallurgy, manufacturing, aerospace, and automotive.

Eddy Current Testing (ET)

Eddy Current Testing (ET), also known as Eddy-Current Testing (ECT), is a highly technical method within the family of electromagnetic testing techniques used in nondestructive testing (NDT). This method relies on electromagnetic induction to identify and characterize both surface and subsurface flaws in conductive materials.

Acoustic Emission Testing (AE)

Acoustic Emission Testing (AET), also known as Acoustic Emission (AE), Acoustic Testing (AT), Acoustic NDT, or AE Testing, is a sophisticated nondestructive testing (NDT) method. This technique utilizes the natural stress waves generated within a material under stress to identify and locate defects. Unlike Ultrasonic Testing, AET does not require external ultrasonic waves; instead, it monitors the ultrasonic waves released by the material itself under stress, such as during load-bearing operations.

Acoustic Emission Testing (AET) is a powerful NDT method that offers detailed insights into the structural integrity and failure mechanisms within materials. As technology advances and becomes more cost-effective, AET is increasingly adopted across various sectors, playing a crucial role in preventive maintenance and safety assurance.

Thermographic Testing (TT)

Thermographic Testing, also known as infrared testing, is a powerful nondestructive testing (NDT) method that uses infrared technology to detect and map temperature variations in equipment, components, and manufacturing processes. This method is invaluable for identifying potential maintenance issues that could lead to equipment failure and costly downtime.

Thermographic testing is an essential tool in a comprehensive maintenance strategy. It provides swift and accurate insights into equipment health and helps facilities maintain high standards of operation and safety.

Benefits and Challenges of Nondestructive Testing



Benefits

  • Safety and Efficiency: Nondestructive testing (NDT) enables the timely detection of defects and potential failures, helping prevent accidents and ensuring the safety and operational integrity of structures and components.
  • Cost-Effective: NDT methods reduce costs by minimizing the expenses associated with structural failures and unscheduled downtime. By identifying issues early, corrective actions can be planned without significant disruptions.
  • Inspection of In-Service Components: NDT allows for the evaluation of components while in operation, which is crucial for continuous production environments and critical infrastructure, eliminating the need for shutdowns.
  • Nondestructive Nature: The component being tested is not damaged or altered during inspection, which preserves the integrity and value of the component, making NDT ideal for expensive or unique parts.
  • Comprehensive Quality Control: Regular use of NDT can enhance product reliability by ensuring that components and assemblies meet or exceed quality specifications. This is particularly crucial in the aerospace and petrochemical industries, where material failure can have catastrophic consequences.
  • Versatility: Different NDT techniques, such as VT, PT, MT, ET, UT, and RT, offer versatile solutions tailored to various materials and defect types, making it applicable across a wide range of industries.

Challenges

  • Skill Requirements: The accurate interpretation of NDT results depends highly on the operator’s skill and expertise. Advanced training and experience are crucial, especially in methods like ultrasonic testing (UT), eddy current testing (ET), and radiographic testing (RT), which require a deeper understanding of complex signals.
  • Technological Dependency: NDT relies on advanced technology that can be expensive to purchase and maintain. Keeping up with the latest advancements in NDT equipment also means regular investment in updating devices and training personnel.
  • Accessibility and Preparation Issues: Some NDT methods require special preparation of the test object or may be limited by the accessibility of certain parts or assemblies. For instance, obtaining clear visuals in VT or ensuring proper surface contact in UT can be challenging in complex structures.
  • Environmental and Operational Limitations: Environmental conditions might affect specific NDT methods, such as electromagnetic interference in eddy current testing (ET) or sound transmission issues in ultrasonic testing (UT). These factors can limit the effectiveness of inspections.
  • Interpretation Variability: The effectiveness of NDT can vary significantly with the inspector’s experience and the qualitative nature of some tests, which may lead to inconsistencies in data interpretation, particularly in visual testing (VT) and magnetic particle testing (MT).
  • Regulatory and Compliance Pressures: Keeping abreast of changing regulations and standards in industries like aerospace and petrochemical can be challenging, as these often dictate NDT methodologies and frequencies.

Applications of Nondestructive Testing

Nondestructive Testing (NDT) plays a crucial role across various industries. It ensures product integrity and safety while adhering to regulatory standards, all without damaging the assets being inspected. This section explores real-world applications of NDT, demonstrating its essential role in maintaining high safety and quality standards.

Petrochemical Industry

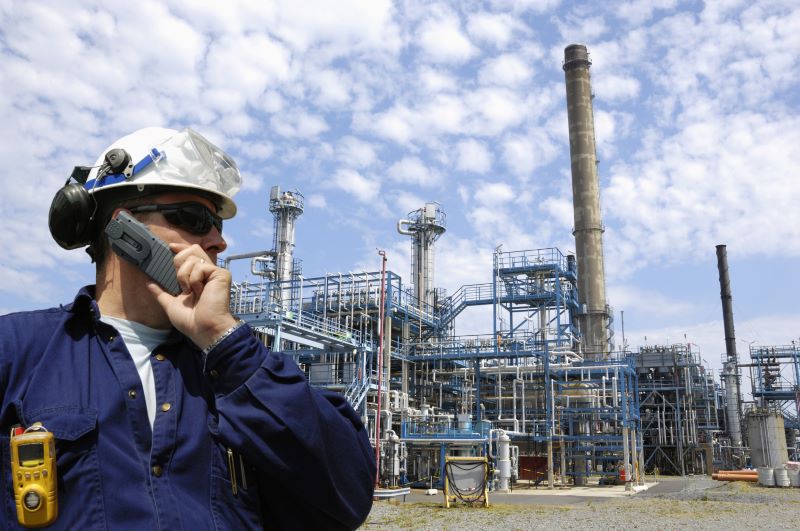

  • Refineries & Chemical Plants: In the petrochemical industry, NDT is essential during the construction, maintenance, and inspection of oil refineries and chemical plants. Critical are the scheduled turnarounds, which are planned shutdown periods to perform maintenance, inspections, and repairs, ensuring operational safety and efficiency. Techniques such as ultrasonic testing (UT), radiographic testing (RT), and magnetic particle testing (MT) help identify potential failures in pipelines, pressure vessels, and structural components that could lead to catastrophic outcomes.
  • Pipeline Integrity: In the oil and gas industry, maintaining pipeline integrity is essential for preventing leaks and ensuring safe operation. NDT methods such as radiographic testing (RT) and ultrasonic testing (UT) are used to inspect pipelines for corrosion, cracks, and other anomalies. These inspections are critical for preventing environmental hazards and ensuring the reliability of energy supply.

Aerospace Industry

The aerospace sector relies heavily on NDT to ensure the reliability and safety of aircraft and spacecraft components. At SpaceX’s Starship manufacturing facility in Boca Chica, advanced NDT methods, including eddy current testing (ET) and digital radiography, are used to inspect the numerous welds on the spacecraft. The Starship’s design involves extensive welding of thin (4mm) stainless steel sections that require meticulous inspection to detect any imperfections. Every inch of these welds must be evaluated to prevent failure, as the integrity of these joints is critical to the spacecraft’s performance and safety.

Wind Energy Sector

NDT is vital for maintaining and ensuring the safety of wind turbines, especially turbine blades. Inspections are performed using ultrasonic testing (UT) and visual testing (VT), often facilitated by drones and rope access techniques, to check for stress fractures, delamination, and other damages. These inspections help maintain blade integrity, crucial for the turbine’s efficiency and safety, preventing costly and hazardous failures.

Infrastructure

  • Bridge Inspection: NDT plays a crucial role in maintaining the safety and longevity of bridges. Visual Testing (VT) and drones are extensively used to assess surface conditions and measure crack propagation over time, providing critical data on the structural health of bridges. These inspections help in the early detection of potential issues that could lead to structural failures if left unaddressed.
  • Rail Inspection: Rail safety is a crucial application of NDT, where ultrasonic testing (UT) is employed to inspect rails for internal defects like cracks or voids. These inspections are vital for preventing rail failures that could lead to derailments, ensuring continuous safety and efficiency in rail transport.

Career Opportunities in Nondestructive Testing

Nondestructive Testing (NDT) is a critical profession offering diverse career opportunities across key industries such as aerospace, utility and power, construction, and the petrochemical sectors. NDT technicians are essential in ensuring safety and compliance, playing a vital role in the maintenance and integrity of various structures and systems. In the aerospace industry, technicians ensure the safety of aircraft and spacecraft by performing thorough inspections throughout the component lifecycle, with salaries ranging above $128,000*annually, depending on experience and skills. Similarly, NDT professionals in the utility and power sector maintain critical energy infrastructure, with potential earnings of over $145,000* annually. This demand highlights the industry’s reliance on skilled professionals to manage and prevent potential failures that could lead to extensive power outages and safety risks.

Further enhancing the career prospects in NDT, the construction and petrochemical industries offer substantial opportunities for advancement from hands-on inspections to managerial roles overseeing safety protocols and large projects. In construction, NDT technicians on average earn between $70,000* and $145,000* annually, using advanced testing methods to ensure structural integrity. The petrochemical sector, known for its high stakes, rewards its NDT technicians with salaries up to $160,000* due to their work’s complex and critical nature. The 2019 PQNDT Salary Survey emphasizes the growing demand and robust job security in NDT, underscoring these professionals’ pivotal role in upholding safety and extending the longevity of vital infrastructures. This field offers lucrative salary prospects and provides a meaningful career path that contributes significantly to industrial safety and quality across various sectors.

How Do You Achieve NDT Certification?

Achieving certification in Nondestructive Testing (NDT) requires comprehensive education, practical experience, and passing employer or ASNT exams, elements that are core to the training programs at The Ocean Corporation. Our programs are designed to provide thorough preparation for NDT certification exams, combining expert instruction with hands-on practice. Students engage with both the theoretical aspects and practical applications of NDT, ensuring they are well-prepared for real-world challenges.

The Ocean Corporation’s curriculum is aligned with the standards of major certifying bodies, such as the American Society for Nondestructive Testing (ASNT). Our experienced instructors guide students through the intricacies of NDT methods and help them understand the industry’s certification paths, including ASNT Levels I, II, and III certifications. This training prepares students for employer certification exams and equips them with a deep understanding of industry standards and best practices, making them competent professionals upon graduation.

With a commitment to using up-to-date resources and the latest NDT technologies, The Ocean Corporation ensures that graduates are proficient in traditional and innovative NDT techniques. This approach positions The Ocean Corporation as a leader in NDT education, effectively preparing students for successful careers in various industries that depend on these crucial testing skills.

Ready to Become an NDT Technician?

If you’re interested in a career that combines technical challenges with the satisfaction of ensuring safety and efficiency in numerous industries, becoming an NDT technician might be the perfect fit.

Enroll in The Ocean Corporation’s comprehensive 30-week NDT education program, request more information, or call us at 800-321-0298 to start your journey in the exciting field of Nondestructive Testing.
*According to the 2019 PQNT Salary Survey
